Industrial Permanent Magnet motor Manufacturers
High Efficiency
Permanent magnet motors are excited by permanent magnets, resulting in no excitation loss.
IE5 Ultra-High Efficiency
Overall efficiency reaches IE5 levels (≥95%), 5%-10% higher than traditional induction motors.
Customizable power
Rated power can be customized according to requirements.
XICHENG Motors: Drive integrated permanent magnet motor
The Drive integrated permanent magnet motor is a highly integrated electromechanical device that combines a permanent magnet synchronous motor with a drive control system. By integrating the motor body, power inverter, controller, sensors, and protection circuits into a single housing, it achieves a highly efficient “all-in-one” drive solution.
Core Architecture:
- Permanent Magnet Motor Body: Utilizes high-performance permanent magnets (such as neodymium iron boron) to provide a constant magnetic field, eliminating excitation losses.
- Built-in Drive System: Integrates power modules, control chips, and communication interfaces for direct matching with the motor.
- Integrated Mechanical Structure: Eliminates external cable connections, simplifies installation, and improves system reliability.
The Drive integrated permanent magnet motor lies in the “full-chain optimization brought about by integration”:
- Energy Saving: IE5 Ultra-High Efficiency Permanent Magnet Motor;
- Efficiency: Eliminates inter-stage losses, achieving optimal matching between the motor and drive;
- Operation: The motor “slowly accelerates” from a standstill to its rated speed, effectively protecting the motor equipment;
- Installation: Simplifies the installation process, lowering the barriers to construction and commissioning;
- Maintenance: Reduces potential failure points, achieving “near-zero maintenance”;
- Performance: Improves control precision and response speed, adapting to more application scenarios;
- Value: Short-term savings in installation and commissioning costs, long-term reductions in electricity and maintenance costs, with a life-cycle cost-effectiveness far exceeding traditional solutions.

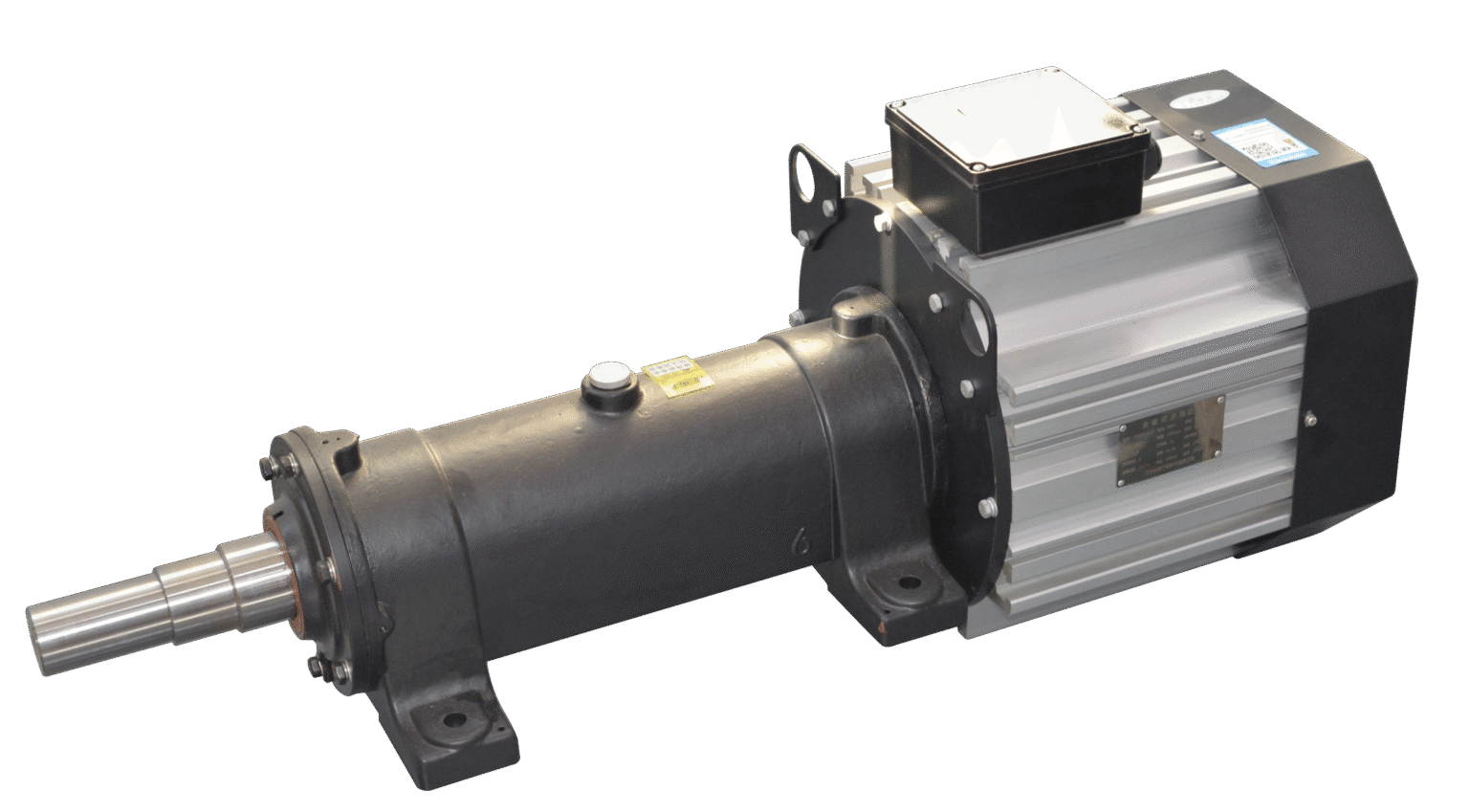

XICHENG Motors: Permanent Magnet Direct Drive Motor
Direct connection between the motor, bearing housing, and impeller reduces energy loss during transmission, resulting in energy savings of 3%-5%. An external driver allows for power and frequency limiting of the permanent magnet motor, ensuring the fan operates within its efficient range under varying load conditions and maximizing motor efficiency.
- High Efficiency: Overall efficiency reaches IE5 levels (≥95%), 5%-10% higher than traditional induction motors.
- Low Transmission Loss:Direct connection between the motor, bearing housing, and impeller reduces energy loss during transmission.
- More Intelligent: Intelligent settings completely solve the problem of excessive fan power.
- High Cost-Effectiveness: Compact size, similar cost to traditional motors, but with more functions.
- High-Efficiency and Wide SpeedRange: The motor operates at high efficiency across a speed range of tens to thousands of revolutions per minute.
The core value of permanent magnet direct drive motors lies in “eliminating all pain points caused by intermediate links”—inheriting the advantages of high efficiency, energy saving, and high power density of permanent magnet motors, while solving problems such as transmission losses, frequent maintenance, and insufficient precision in traditional solutions through “direct drive.”

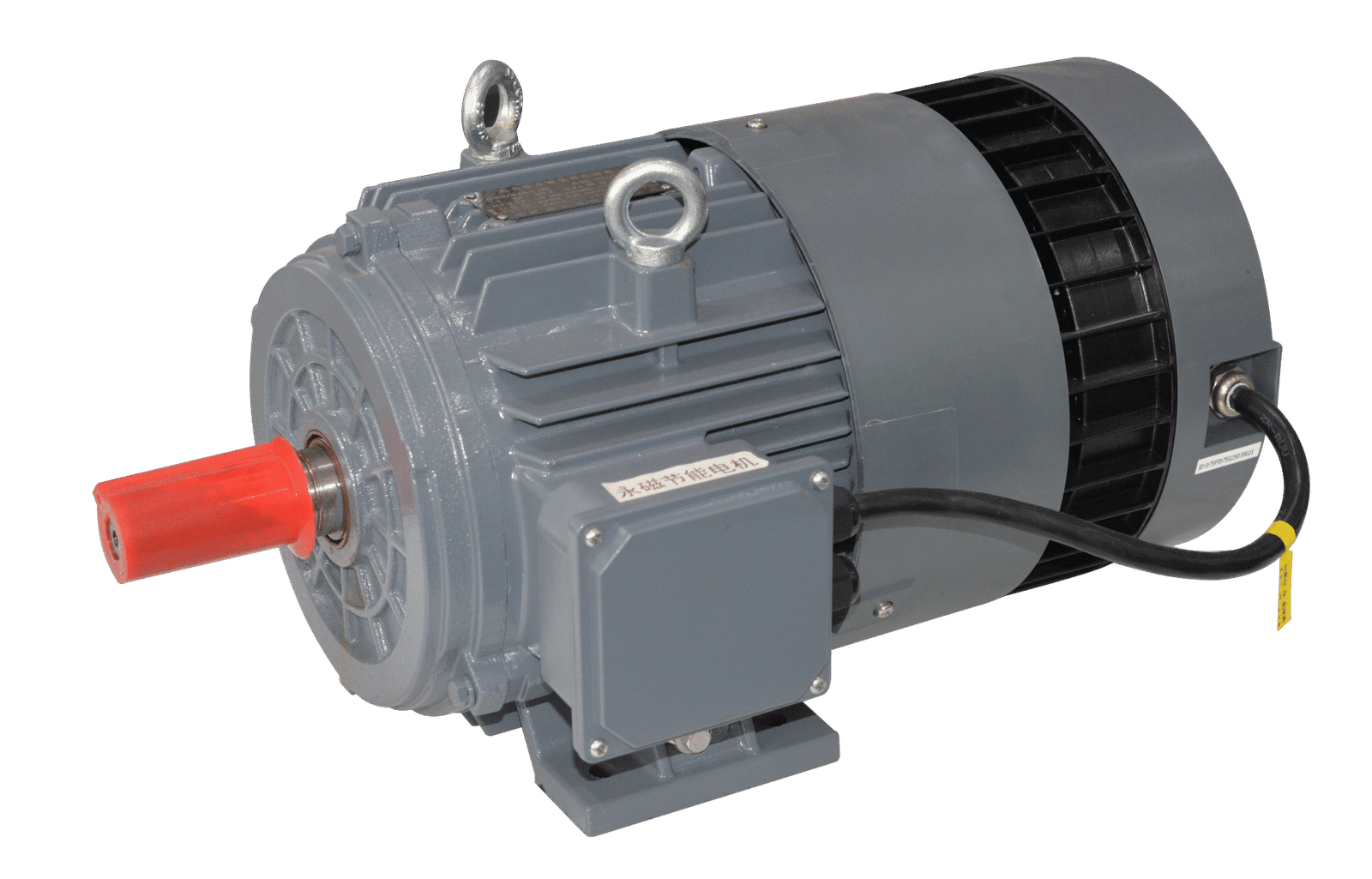

XICHENG Motors: Permanent Magnet Synchronous Motor
Permanent magnet synchronous motor + split-type unit refers to a configuration where the PMSM motor body and the controller/driver are designed separately and connected by cables to form a complete drive system. Unlike an “integrated unit” (where the motor and controller are integrated), the split-type unit uses independent component designs; the motor body, driver, encoder, etc., are independent modules that work together via cable connections.
Core advantages of Permanent magnet synchronous motor :
- No excitation current required, eliminating excitation losses and improving efficiency by 5-10%
- High power density (2-4kW/kg), small size and light weight
- Power factor as high as 0.95 or higher, eliminating the need for reactive power compensation
The PMSM + split-type unit is an advanced drive solution that combines the high efficiency and energy-saving characteristics of PMSMs with the flexibility of a split-type design. It leverages the core advantages of permanent magnet motors, such as high efficiency (≥92%) and high power density (1.5-2 times higher than traditional motors), while solving practical problems such as heat dissipation, maintenance, and environmental adaptability through a split design. It is particularly suitable for industrial automation, HVAC, and new energy application scenarios with high requirements for reliability, energy efficiency, and ease of maintenance.

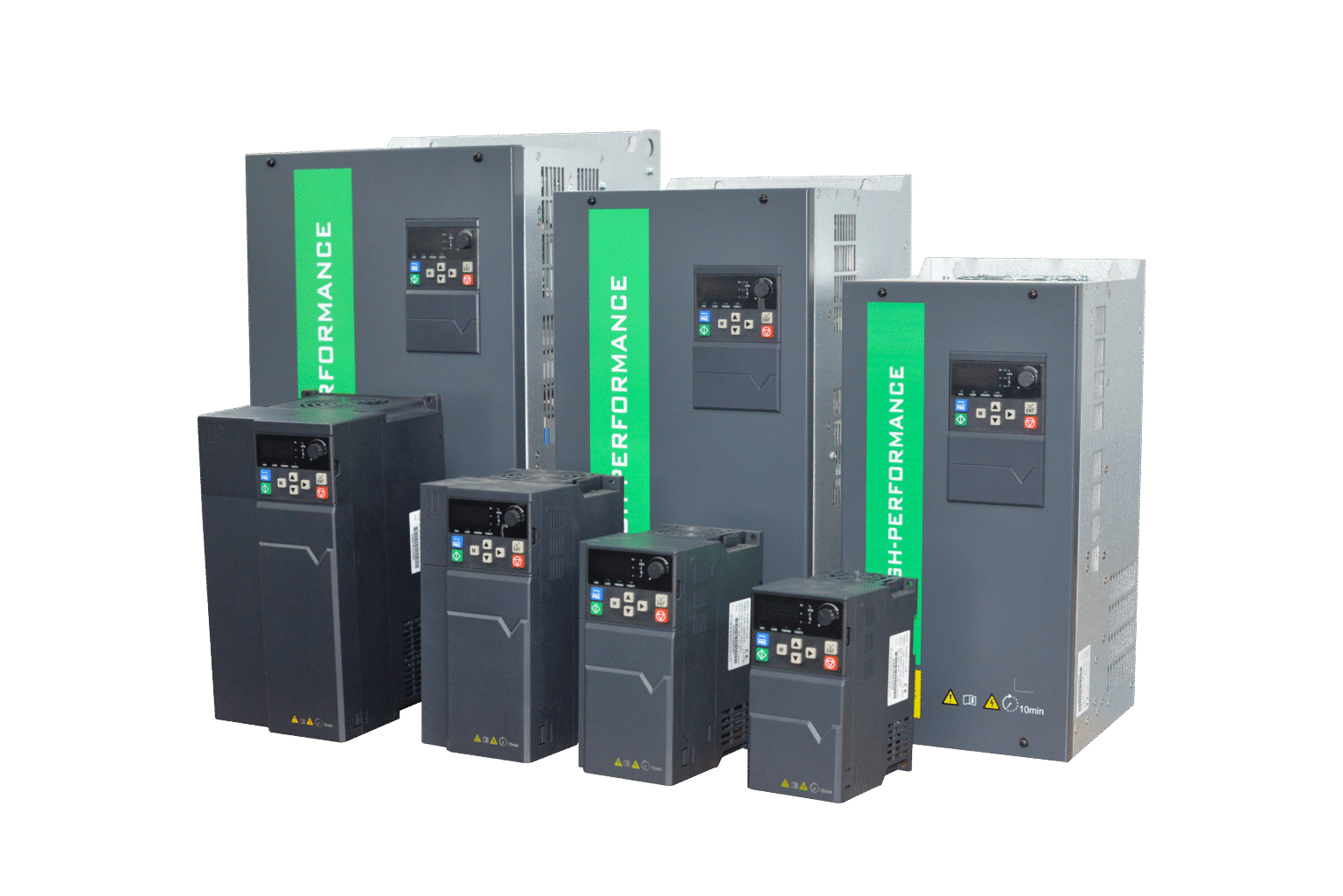

External Variable Frequency Drive
The core advantages of external variable frequency drives (VFDs) revolve around four dimensions: energy saving, precision, protection, and flexibility. Combined with their core principle of adjustable voltage/frequency, they are adaptable to various scenarios including industrial production, new energy, and civilian equipment. Their specific core values are:
1. Cost Reduction: Energy saving and consumption reduction (directly reducing electricity costs) + Extended equipment lifespan (reducing maintenance/replacement costs);
2. Efficiency Improvement: Precise speed control improves production efficiency + Intelligent adaptation to automation (reducing manual intervention);
3. Safety: Multiple protections prevent equipment failure and power grid fluctuations (reducing downtime risks).
XICHENG permanent magnet motors are entirely developed, manufactured, and sold independently by XICHENG EP LTD. Some of our permanent magnet motors have obtained Level 1 energy efficiency certification, achieving a new breakthrough in energy conservation and environmental protection. XICHENG permanent magnet motors can be applied in numerous fields, including fans, pumps, compressors, CNC manufacturing, belt drives, and cranes. Their high efficiency and energy-saving advantages can bring higher returns to businesses. Choosing XICHENG Motors means becoming your reliable partner. We can provide customized solutions and have extensive experience and strong support. Contact us today to learn how we can help your business grow with cutting-edge, high-quality products.
