Drive integrated permanent magnet motor | XICHENG
The drive integrated permanent magnet motor is an integrated power device that deeply integrates the permanent magnet synchronous motor body with the power electronic drive control unit (including inverter, controller MCU, sensor, protection circuit, etc.). Some high-end products also integrate components such as reducer and brake. The core is to solve the problems of large size, complex wiring and slow response of traditional motor and drive separation layout through “mechanical + electrical” integrated design. It is the core product of the integration of permanent magnet motor technology and power electronics technology.
Specifications
| Category | Electric Motors, Permanent magnet motor |
|---|---|
| Frame size mm | H 90- H 160 |
| KW | 2.2 kW – up to 15kW |
Voltage | 380V |
| Noise | 62-73 dB(A) |
| Rated speed | 1500-3000 (rpm) |
| HZ | 100-200 Hz / Built-in frequency converter drive |
| Applications | Blowers, water pumps, compressors, transmission devices, etc. |
| Certification | GB30253-2013″Energy Efficiency Limits and Energy Efficiency Grades for Permanent Magnet Synchronous Motors” – Level 1 |
Drive integrated permanent magnet motor | XICHENG
Core Components (3 Key Modules)
- Permanent Magnet Motor Body: The core actuator, using high-performance permanent magnet materials such as neodymium iron boron (NdFeB) for the rotor. It requires no excitation winding and features high power density, high efficiency, large starting torque, and smooth low-speed operation, making it the core of power output.
- Drive Control Unit: The “brain + nerve center,” comprising power semiconductors (IGBT/MOSFET), rectifier/inverter circuits, microcontroller (MCU), current/position sensors (encoder), and vector control algorithm modules. It is responsible for converting AC/DC power into electrical energy adapted to the motor, while simultaneously adjusting speed, torque, and position in real time for precise control.
- Auxiliary Integrated Components: Adapted to the application scenario, such as cooling systems (air cooling/liquid cooling), mechanical connection structures (flanges, shafts), and protection devices (overcurrent/overtemperature/overload protection). Some products integrate reducers (e.g., robot joint motors) and brakes (e.g., medical device motors).
Core Technological Advantages
- Small size and light weight
- Level 1 energy efficiency, effectively saving 5%-15% energy
- Intelligent control, simple operation
- Integrated design
- Natural soft start
- Wide applicability
- Low temperature rise, long service life
- High torque, high efficiency
- High power factor

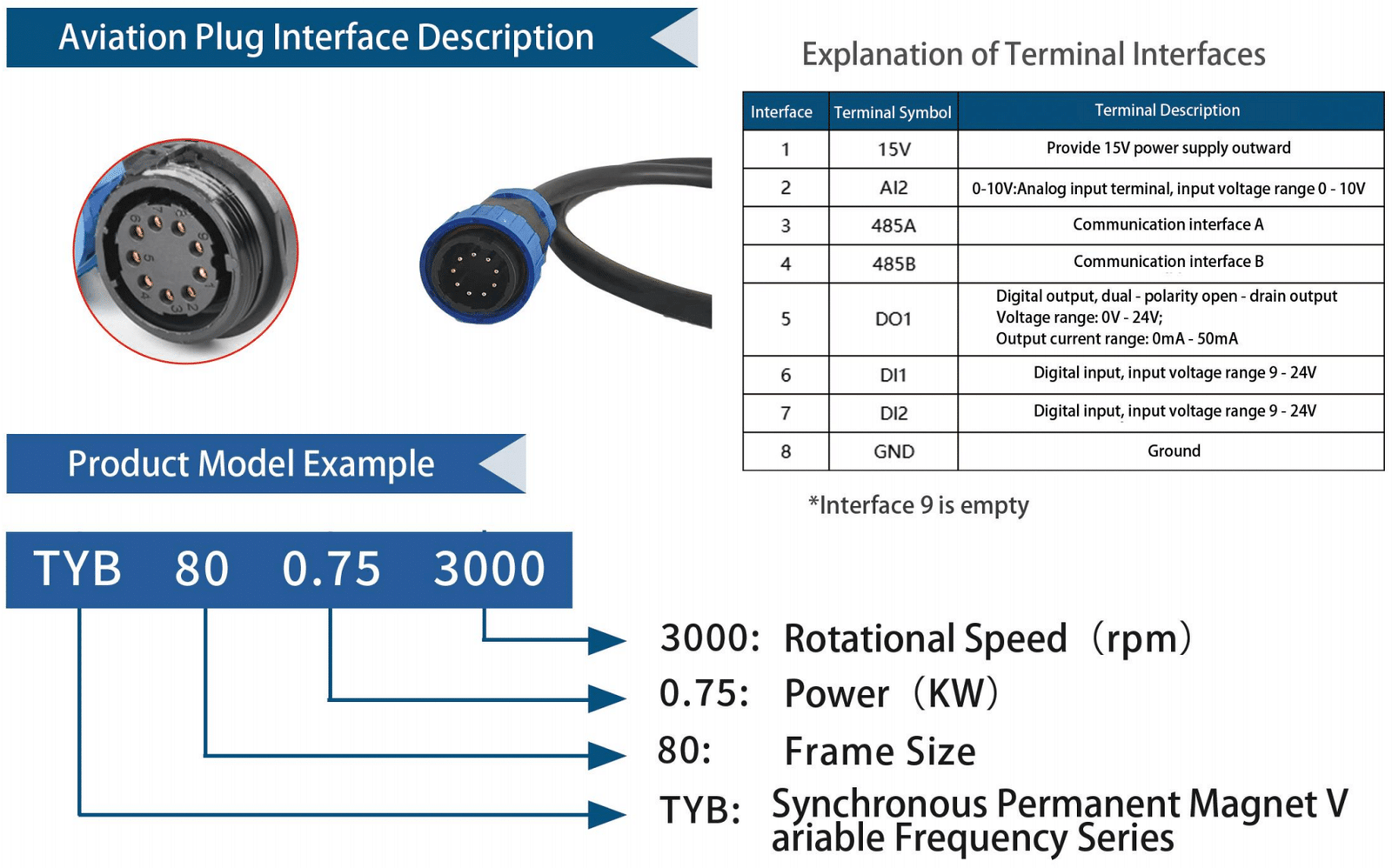

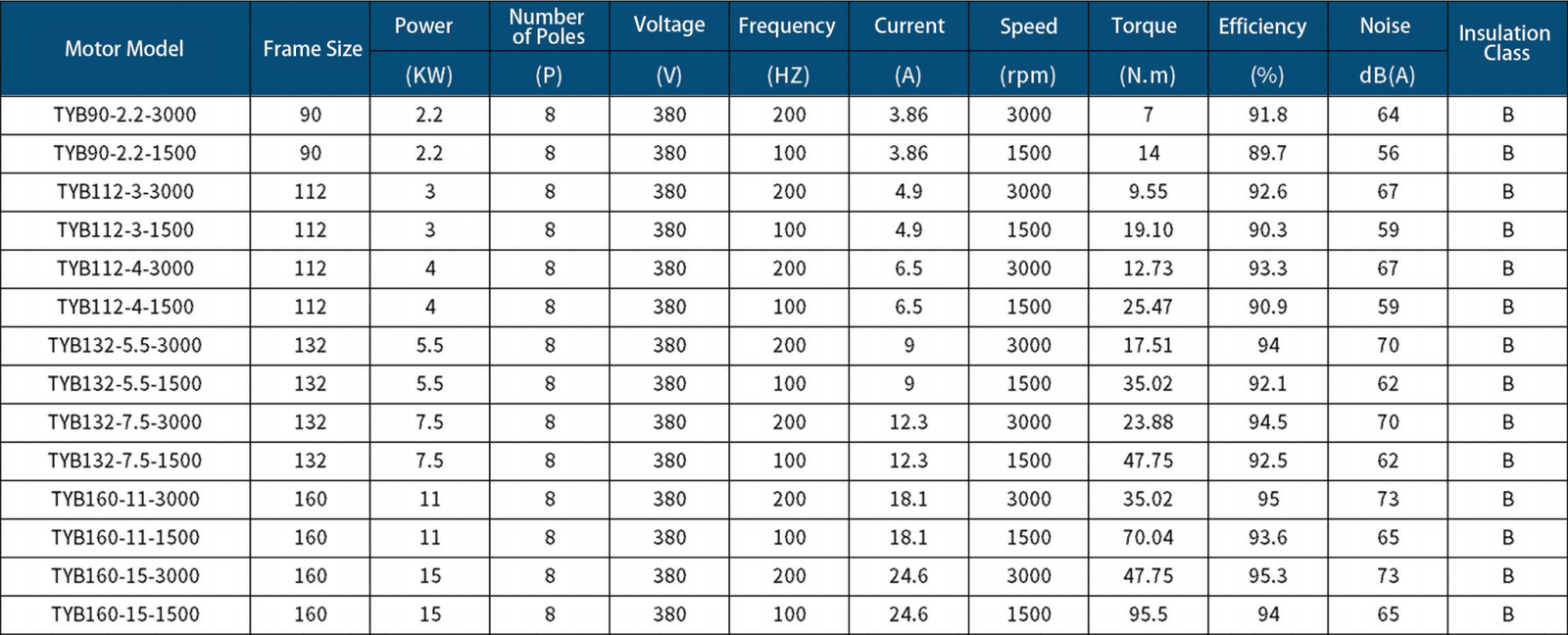

Drive Integrated Permanent Magnet Energy Saving Motor Parameters
