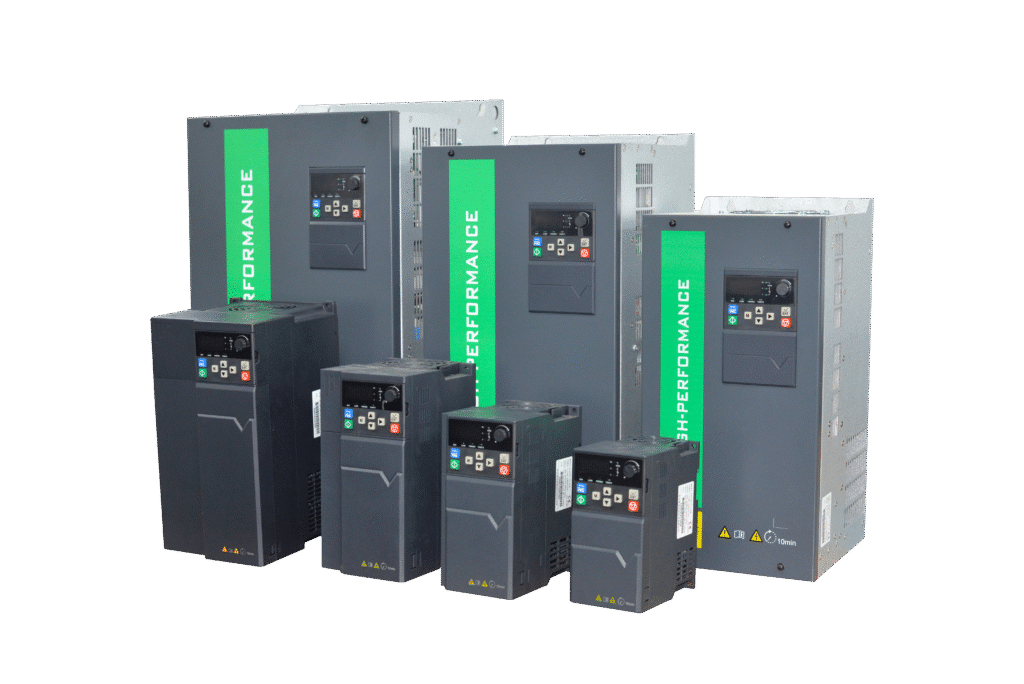

External Variable Frequency Drive EZ690 | XICHENG
The EZ690 series not only adopts internationally leading vector control technology, compatible with asynchronous and synchronous motor control, but also achieves a compact design through rational component layout while prioritizing high performance and high reliability. It enhances customer usability and industry-specific design, featuring abundant expansion interfaces and new expansion accessories, achieving high performance, high reliability, high power density, and high applicability.
Specifications
- High-performance Vector Universal Platform, New Motor Control Algorithm;
- Integrationof Synchronous and Asynchronous Drives, Comprehensive Coverage of Open-Loop andClosed-Loop Control;
- Comprehensive Thermal Simulation Design Ensures the Rationality of Hardware Layout
- New Air Duct Design, Full-Series DC Fan Cooling, Safe and Reliable;
- Requirements for Software and Hardware Modular Design, Strong Expandability;
- Comprehensive Expansion interfaces, Abundant Accessory Options, Covering Various ApplicationScenarios;
- Optimized and User-friendly Keyboard Design, with Support for New External Keyboards;
- Three-Prevention Design for the Whole Machine and Three-Prevention Paint Coating on PCB EnsureProduct Stability and Reliability;
- Full-Series Integrated lGBT Module Design Ensures Stable Quality;
- Built-in industry Application Macros, Supporting One-Click Configuration of Industry Parameters;
- Personalized Pressure and Frequency Dormancy, with Direct Target Value Setting via Up/Down But-tons;
- Full-Series Intelligent input Phase-Loss Protection Function;

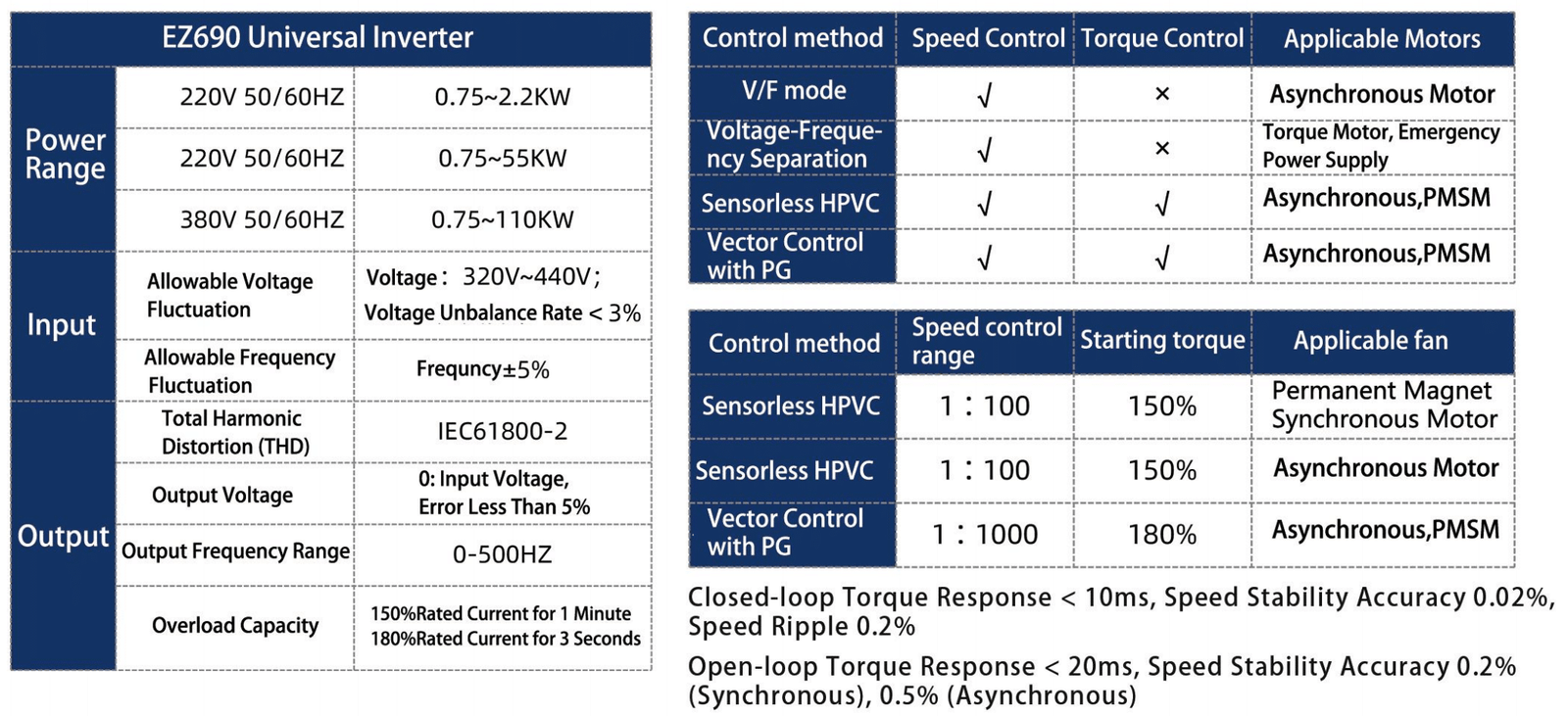

General specifications of inverter

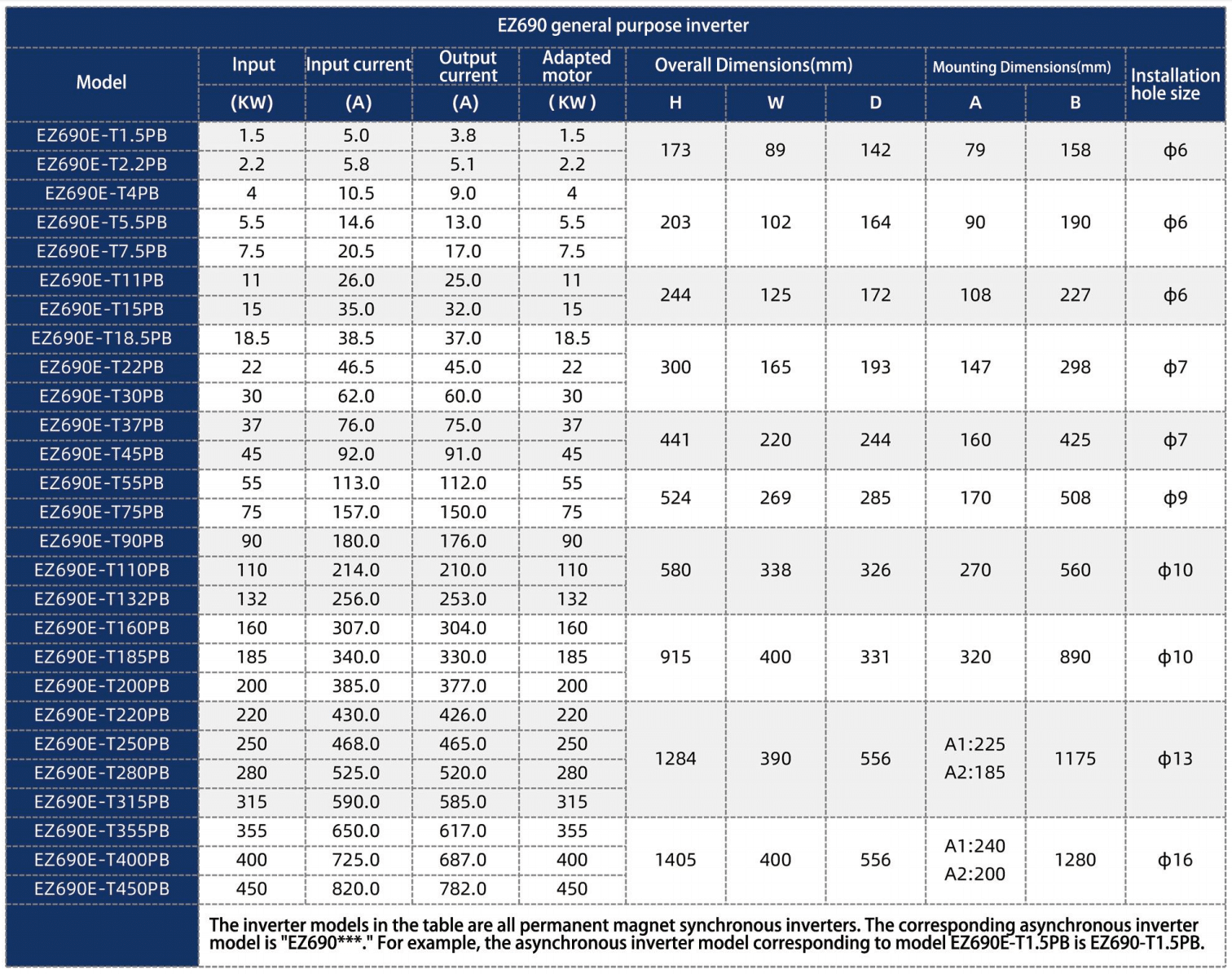

Inverter parameter table
